Quick answer: The main AC parts are the evaporator coil, air filter, blower fan, thermostat, compressor, condenser coil, outdoor fan, refrigerant lines, drainage pipe, and electrical controls. These air conditioner parts work together to move heat from your room to the outdoors. You do not need to repair them yourself, but knowing the basic aircon parts helps you explain symptoms clearly, maintain the safe parts, and know when to call a technician.
Renovation is done, the bedroom is finally painted, and the first hot night arrives before the curtains do. That is usually when homeowners realise the aircon is not one magic box. It is a system of parts doing different jobs.
What are the main parts of an AC system?
The main parts of an AC system can be grouped into indoor parts, outdoor parts, connecting parts, and control parts. In a split aircon system, the indoor unit cools and circulates room air, while the outdoor unit releases heat outside. The refrigerant, piping, drainage, and electrical controls connect the two sides.
Here is the useful position: homeowners should understand AC components well enough to describe a problem, but not enough to feel tempted to open the unit and repair live electrical or refrigerant parts. Cleaning a filter is homeowner maintenance. Opening panels, checking capacitors, handling refrigerant, or replacing air conditioner spare parts is technician work.
If your unit is already old, noisy, or no longer cooling properly after regular servicing, compare air conditioners for Singapore homes before spending heavily on repeated repairs.
Quick guide to aircon parts and what they do
| Aircon component | Where it is found | What it does | Common warning sign |
|---|---|---|---|
| Air filter | Indoor unit | Traps dust before air passes through the cooling coil. | Weak airflow, dusty smell, or faster dust build-up. |
| Evaporator coil | Indoor unit | Absorbs heat from indoor air so the room can cool down. | Poor cooling, ice build-up, or water dripping. |
| Blower fan and motor | Indoor unit | Pushes cooled air back into the room. | Rattling sounds, uneven airflow, or no airflow. |
| Thermostat or sensor | Indoor unit or remote-control system | Reads temperature and tells the system when to cool. | Room feels too warm or too cold despite the setting. |
| Compressor | Outdoor unit | Pressurises refrigerant so heat can be moved outdoors. | Loud outdoor noise, tripping power, or no cooling. |
| Condenser coil | Outdoor unit | Releases heat from the refrigerant to the outside air. | Weak cooling, overheating, or higher running load. |
| Outdoor fan | Outdoor unit | Moves air across the condenser coil for heat release. | Outdoor unit runs hot or makes unusual noise. |
| Drainage pipe | Connected to indoor unit | Removes condensation formed during cooling. | Water leaking from the indoor unit. |
| Electrical controls | Indoor and outdoor units | Manage power, starting, fan speed, and system protection. | Unit does not start, trips, or shuts down suddenly. |
Indoor AC parts inside the aircon unit
Evaporator coil
The evaporator coil is one of the most important air conditioner components in the indoor unit. Warm room air passes over the coil, and the refrigerant inside absorbs heat. If the coil is dirty, frozen, or blocked, the room may take longer to cool even when the fan is running.
In Singapore humidity, condensation is normal during cooling. Constant dripping indoors is not. It can point to drainage issues, dirt build-up, or a servicing problem that needs proper checking.
Air filter

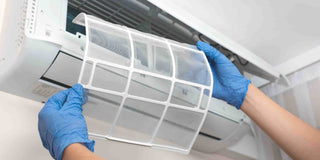

The air filter is the homeowner-friendly part of the system. It catches dust before air reaches the cooling coil. A clogged filter makes the unit work harder and can reduce airflow.
Check and clean reusable filters regularly, especially if the room is used daily, faces a dusty road, or has pets. Let the filter dry fully before reinstalling it. Do not run the unit without the filter just because the room feels warm.
Blower fan and motor
The blower fan moves cool air into the room. If the fan is dirty, loose, or failing, you may hear rattling, scraping, or uneven airflow. This is one of those aircon components that can sound minor at first and become annoying very quickly.
You can wipe visible dust from accessible surfaces only if the unit is off and safe to reach. Do not dismantle the fan assembly yourself.
Thermostat and sensors
The thermostat or temperature sensor tells the unit when the room has reached the set temperature. If it reads the room incorrectly, the aircon may run too long or stop too early.
Keep heat sources such as lamps, routers, and strong afternoon sun away from the sensing area where possible. A unit placed in a hot corner may behave differently from one positioned in a shaded part of the room.
Outdoor split aircon parts you should recognise
Compressor
The compressor is the high-workload part of the outdoor unit. It pressurises refrigerant and keeps the cooling cycle moving. If the compressor fails, the aircon may blow air without cooling the room.
This is not a DIY part. Compressor problems should be diagnosed by a qualified technician because the issue may involve refrigerant, electrical controls, or the outdoor unit itself.
Condenser coil
The condenser coil releases heat outdoors. If it is blocked by dirt, leaves, or poor airflow, the system has to work harder. Outdoor units need breathing space, especially in warm service yards and balconies.
Keep the surrounding area clear. Do not box the outdoor unit in for visual neatness unless the design allows proper ventilation and servicing access.
Outdoor fan
The outdoor fan helps move air across the condenser coil. A noisy fan, damaged blade, or weak motor can affect heat release and cooling performance.
If the outdoor unit sounds different from usual, switch the system off and arrange a check. Running a struggling unit for days is rarely the cheaper choice.
Connecting aircon parts between indoor and outdoor units
Refrigerant and refrigerant lines
Refrigerant carries heat from the indoor unit to the outdoor unit. It is central to how split aircon parts work. If refrigerant is low because of a leak, the unit may cool poorly, freeze at the coil, or run longer than usual.
Do not handle refrigerant yourself. It requires proper tools, correct gas type, and safe leak checks. Refilling without fixing a leak is a short-term patch, not a repair.
Aircon piping and insulation
Aircon piping connects the indoor and outdoor sides of the system. Insulation around the pipes helps reduce condensation and cooling loss. Damaged insulation can lead to sweating pipes, stains, or moisture issues around the trunking.
During renovation, plan aircon routes early. Piping, drainage, carpentry, lighting, and curtain tracks have a habit of wanting the same ceiling or wall space.
Drainage pipe
The drainage pipe removes water formed by condensation. If it clogs, slopes poorly, or is not maintained, water may drip from the indoor unit. In a bedroom, this usually announces itself at the worst possible time.
Water leaks should be checked early. They can damage paint, furniture, flooring, or built-in carpentry if ignored.
Electrical AC components and safety parts
Electrical AC components include control boards, capacitors, relays, wiring, sensors, and protection devices. These parts help the system start, stop, regulate temperature, and protect against faults.
Do not tighten wiring, test capacitors, or open electrical panels unless you are trained to do so. If the unit trips the power, smells burnt, or repeatedly shuts itself off, stop using it and call for service. That is not the time for a screwdriver and confidence.
Air conditioner spare parts: repair or replace?
Air conditioner spare parts should match the model, capacity, and system type. A wrong part can create new problems even if it looks similar. For newer units, replacing a faulty fan motor, sensor, capacitor, or drainage part may be reasonable. For older units with repeated compressor, refrigerant, or control board issues, replacement may be the more practical route.
If the same fault returns after servicing, ask for a clear diagnosis before approving another repair. In Singapore homes where aircon runs nightly, reliability matters as much as repair cost.
For broader appliance planning, browse home appliances for Singapore households. If you are reducing aircon use in milder weather, ceiling fans can also support everyday airflow without replacing aircon cooling.
Common symptoms and which aircon parts may be involved
| Symptom | Possible parts involved | What homeowners can safely do |
|---|---|---|
| Weak airflow | Air filter, blower fan, evaporator coil | Clean the filter and check whether airflow is blocked. |
| Not cold enough | Evaporator coil, refrigerant, compressor, condenser coil | Clean the filter, then arrange servicing if cooling does not improve. |
| Water dripping indoors | Drainage pipe, evaporator coil, insulation | Switch off the unit and schedule a check before water damage spreads. |
| Outdoor unit is noisy | Outdoor fan, compressor, mounting, motor | Stop using the unit if the sound is harsh, metallic, or sudden. |
| Unit trips power | Electrical controls, compressor, wiring, control board | Do not restart repeatedly. Call a technician. |
How to care for the parts of aircon unit safely
The safest homeowner care is simple. Clean reusable filters, keep vents unblocked, clear clutter around the outdoor unit, and book regular servicing if the system is used heavily. Avoid spraying water into the indoor unit, pouring chemicals into the drain line, opening electrical covers, or trying to repair refrigerant leaks.
The phrase parts of aircon unit sounds simple, but the system includes electrical, mechanical, refrigerant, and drainage parts working together. Treat it like an installed appliance, not a loose gadget.
Every order ships locally, and after-sales support is handled from Singapore. Complimentary delivery and professional installation are available on qualifying orders. The team is reachable at +65 6950-2657, Monday to Friday, 9am to 6pm.
FAQs about AC parts and aircon components
What are the most important air conditioner parts?
The most important air conditioner parts include the evaporator coil, compressor, condenser coil, blower fan, air filter, thermostat, refrigerant lines, drainage pipe, and electrical controls. Each part supports cooling, airflow, heat release, or safe operation.
Are split aircon parts different from window AC parts?
Yes. Split aircon parts are divided between an indoor unit and an outdoor unit, connected by refrigerant piping, drainage, and electrical controls. Window AC parts are usually contained in one single unit.
Which aircon parts can homeowners clean?
Homeowners can usually clean reusable air filters and wipe accessible exterior surfaces. Internal coils, blower assemblies, refrigerant parts, electrical controls, and air conditioner spare parts should be handled by trained technicians.
What AC components cause water leaks?
Water leaks often involve the drainage pipe, evaporator coil, insulation, or dirt build-up inside the indoor unit. If water drips indoors, switch off the unit and arrange servicing before it damages walls, flooring, or furniture.
When should I replace the aircon instead of repairing it?
Consider replacement if the unit has repeated major faults, poor cooling after servicing, expensive spare-part needs, or high running effort compared with newer inverter options. A technician can confirm whether repair still makes sense.
