Quick answer: Built-in ovens can sit inside an oven cupboard only when the cupboard fits the oven size, supports its weight, allows heat to escape, and has a safe power connection prepared by a qualified installer.
Measure the cabinet opening first, check the oven manual for clearance needs, confirm the power point or hard-wiring plan, then slide and secure the oven only after the cupboard is level and clear. In a Singapore renovation, this should be planned before the carpentry is finalised, not after the kitchen cabinets are already installed.

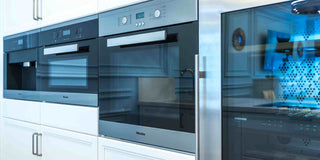

Built-in ovens give the kitchen a cleaner look because they sit inside the cabinetry instead of taking up counter space. The trade-off is simple: the oven cupboard has to be right. Even a beautiful oven fitted into a weak, tight, or poorly ventilated cabinet becomes a daily problem rather than an upgrade.
What is a built-in oven?
Built-in ovens are designed to be installed inside kitchen cabinetry. They may sit at eye level in a tall cabinet or below the countertop in a built-under layout. Unlike a freestanding cooker, a built-in oven needs a prepared cabinet space, proper support, and safe access to power.
Can You Put a Built-In Oven in an Oven Cupboard?
Yes, but not every cupboard is suitable. The cupboard must be built for appliance use, not treated like a standard storage cabinet. Heat, weight, door clearance, and wiring access all matter.
The strongest position here is this: the oven cupboard is not a finishing detail. It is part of the appliance setup. If the cabinet is wrong, even a good oven will feel badly chosen.
Before buying or replacing a built-in oven, check these four points:
| What to Check | Why It Matters |
|---|---|
| Cabinet opening | The oven must fit the height, width, and depth of the available space without being forced in. |
| Ventilation gap | Built-in ovens release heat. The cupboard needs enough airflow based on the appliance manual. |
| Cabinet strength | The shelf and side panels must support the oven safely over time. |
| Power access | The oven needs a safe power point or hard-wired connection prepared before installation. |
Why Built-In Oven Size Matters
Oven size affects more than looks. One unit that is too small may limit batch cooking. One unit that is too large may waste space and make the cabinet harder to ventilate. In compact HDB and condo kitchens, every cabinet run already has a job to do, so guessing the oven size is a bad move.
Measure the height, width, and depth of the oven cupboard. Then check the installation guide for the model you plan to buy. Do not rely only on the product’s front-facing size because the body of the oven, rear clearance, trim, and door swing can affect the final fit.
- Measure the cabinet opening before shopping.
- Check the oven’s required cut-out size in the manual.
- Leave enough room for the oven door to open fully.
- Make sure nearby drawers, handles, and walls do not block the door.
- Confirm that the cabinet shelf is level before the oven is placed inside.
Choosing the Right Oven Cupboard
The best oven cupboard is sturdy, level, heat-aware, and easy to access for servicing. Standard storage cabinets are not always suitable unless the carpenter or installer has prepared them for built-in appliance use.
For a tall oven housing, eye-level placement can make baking trays easier to handle. For a built-under setup, the oven sits below the counter and usually works better in smaller kitchens where vertical cabinet space is limited. If you cook often, eye-level installation is kinder on your back. If counter and storage planning are tight, built-under installation is usually the more practical choice.
Materials matter too. The cabinet should be made from stable, durable boards or properly finished wood components that can handle normal kitchen heat exposure. The oven manual should still be the final guide because different models have different ventilation requirements.
Tip for Choosing an Oven Cupboard
Choose the oven and cupboard together. If the oven is selected after carpentry is completed, your options may shrink to whatever fits the existing opening. Planning both early gives you better control over size, height, airflow, and the final kitchen look.
Preparing for Built-In Oven Installation
Preparation is where most installation mistakes are avoided. Before the oven is lifted into place, the area should be clean, measured, and safe to work around.
Tools and Materials
- Measuring tape
- Screwdriver
- Level
- Work gloves
- Manufacturer’s installation manual
- Provided screws or mounting brackets
Safety Checks
- Turn off the power supply before any installation work begins.
- Do not attempt hard-wiring if you are not qualified to do electrical work.
- Keep children and pets away from the installation area.
- Ask another adult to help lift the oven because built-in ovens are heavy and awkward to handle.
- Keep the manual nearby during the full installation process.
If the oven requires hard-wiring, engage a qualified installer or licensed electrical worker. This is not the place to learn wiring from a short article. Local delivery, installation, and service support matter for appliances because a built-in oven is not easy to remove once the carpentry is finished.
Step-by-Step Built-In Oven Installation Guide
Use this as a planning guide. Always follow the oven manufacturer’s manual because the mounting method, clearances, and electrical requirements can differ by model.
1. Remove the Old Oven If Needed
- Turn off power at the breaker.
- Remove the screws holding the old oven to the cabinet.
- Slide the old oven forward carefully with help.
- Disconnect it only according to the appliance manual or through a qualified installer.
2. Check the Oven Cupboard
- Clean the inside of the cabinet opening.
- Check that the base is level.
- Confirm that no pipe, loose wire, or obstruction blocks the oven body.
- Compare the cabinet opening with the oven’s required cut-out size.
3. Position the Oven
- Lift the oven with help.
- Slide it slowly into the oven cupboard.
- Keep the front aligned with the cabinet face.
- Do not force the oven into a tight space.
4. Secure the Oven
- Use the mounting screws or brackets supplied with the oven.
- Fix the oven to the cabinet as directed in the manual.
- Check that the oven does not shift when the door opens.
5. Test the Oven
- Restore power only after the oven is secured and the connection is safe.
- Run the oven according to the first-use instructions in the manual.
- Check the display, fan, light, heating modes, and timer.
- Brief new-appliance smells can happen during first use, but stop using the oven and seek support if the smell is strong, smoky, or persistent.
How to Replace a Built-In Oven
Replacing a built-in oven is easier when the new model matches the existing cabinet opening. The safest route is to confirm the old oven’s cut-out size before choosing the replacement.
- Measure the current oven cupboard opening.
- Choose a replacement oven that matches the required space.
- Turn off power at the breaker.
- Remove the old oven mounting screws.
- Slide the old oven out with help.
- Have the electrical connection handled safely.
- Slide the new oven into place.
- Secure it with the supplied screws or brackets.
- Restore power and test the appliance.
Post-Installation Tips
Cleaning and Maintenance
Read the manual: Every oven has its own care guide. Follow it before using cleaning sprays, steam functions, or self-cleaning modes.
Clean spills early: Burnt food hardens fast. Wipe spills once the oven is cool to avoid stubborn residue.
Check seals and hinges: Loose hinges or damaged door seals can affect heat retention and cooking performance.
Safety Checks
Keep the area clear: Do not store flammable items around the oven opening or inside nearby cabinets that heat up during use.
Watch the first few uses: Pay attention to unusual smells, flickering, tripping power, or uneven heating.
Use child safety settings: If your oven has a control lock, activate it in homes with young children.
First Test Bake: Singaporean Bak Kwa Oven-Roasted Treat
Once the oven is installed and tested according to the manual, simple tray bakes are a practical way to get familiar with heat settings. Bak kwa is a familiar Singapore favourite, but treat this as a cooking idea rather than an installation test. The appliance itself should be checked before food goes in.
Basic ingredients: minced pork, sugar, soy sauce, oyster sauce, fish sauce, five-spice powder, and optional red food colouring.
Spread the seasoned meat thinly on a lined baking tray, bake at a moderate temperature, cut into pieces, then return the pieces to the oven until the edges are lightly charred. Keep a close watch because sugar can burn quickly.
Final Checks Before You Use the Oven Daily
Open and close the door a few times. Check that the cabinet does not move, the oven sits straight, and nearby drawers still work properly. Give the cupboard area a final look after the first few heating cycles to make sure there are no heat marks or unusual smells around the cabinet.
Every order ships locally, and after-sales support is handled from Singapore. Complimentary delivery and professional installation are available on qualifying orders. The team is reachable at +65 6950-2657, Monday to Friday, 9am to 6pm.
Frequently Asked Questions
What is an oven cupboard?
Oven cupboard refers to a cabinet space prepared to hold a built-in oven. It should match the oven’s required cut-out size, support the appliance weight, allow ventilation, and provide safe access to power.
Can I install a built-in oven myself?
You can measure the space, prepare the cabinet area, and check the manual yourself. If the oven needs electrical connection work, use a qualified installer or licensed electrical worker instead of treating it as a DIY wiring job.
Does a built-in oven need ventilation inside the cupboard?
Yes. Built-in ovens need proper airflow because heat builds up during use. Follow the oven manual for clearance and ventilation requirements before finalising the cabinet.
Can I replace a built-in oven without changing the cupboard?
Yes, if the new oven matches the existing opening and power setup. Measure the old space first. If the new model needs different clearance, wiring, or support, the cupboard may need adjustment.
