The main types of aircon for Singapore homes are single-split System 1 units, multi-split systems such as System 2, System 3 or System 4, portable air conditioners, and selected window or wall units where installation rules allow. Choose by room count, BTU capacity, outdoor condenser placement, energy use, installation route, and how often each room needs cooling.
You have got the BTO keys, and every room feels warm before the carpentry is even done. The real decision is not just “which brand?” It is which cooling setup actually suits the flat, the rooms, and the way your household sleeps.
What types of air conditioning system suit Singapore homes?
The types of air conditioning system that suit Singapore homes depend on whether you need cooling for one room, several bedrooms, a home office, or an open living space. Most homeowners comparing aircon options will look at split systems first because they suit daily bedroom and HDB use better than many overseas-style systems.
The original article lists many global air conditioner types, including central air, ductless mini-split, window units, portable units, hybrid systems, geothermal systems, PTAC units, evaporative coolers, and smart air conditioners. That broad list is useful for education, but not every option makes sense for a typical HDB or condo home.
For most Singapore flats, I would shortlist split aircon systems first, then consider portable units only when fixed installation is not suitable. A cheaper-looking portable unit may not feel like better value if it takes up floor space, needs exhaust access, and cools less evenly.
| Aircon type | Best for | Watch out for |
|---|---|---|
| System 1 aircon | One bedroom, study room, guest room, or WFH space | Only cools one room, so it may not suit a whole-home plan. |
| System 2, 3 or 4 aircon | Multiple bedrooms, study rooms, and family flats | Needs careful condenser, piping, drainage, and BTU planning. |
| Portable air conditioner | Rental rooms or spaces where fixed installation is not suitable | Needs exhaust access, floor space, drainage planning, and noise checks. |
| Window or wall unit | Selected older layouts where installation is allowed | May affect window use, noise, appearance, and HDB or property rules. |
| Central ducted air conditioning | Larger landed homes or selected major renovations | Usually not the practical starting point for most HDB flats. |
| Evaporative cooler | Dry climates | Less suitable for Singapore's humid weather because it adds moisture. |
If you are comparing cooling options now, start with air conditioners in Singapore and narrow your choice by room count, cooling capacity, system type, and installation needs.
System 1 aircon for one-room cooling

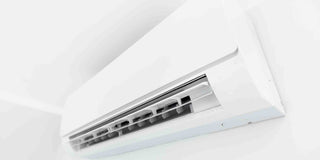

A System 1 aircon connects one indoor unit to one outdoor unit. It is a practical choice for a bedroom, study, nursery, or home office that needs regular cooling on its own.
This setup works well if you only use aircon in one room or want a focused replacement for an old unit. It may be less suitable if you already know two or three bedrooms need cooling every night. In that case, separate System 1 units may not be the neatest long-term answer.
Browse System 1 air conditioners if your cooling need is limited to one room.
Multi-split aircon for several rooms
A multi-split setup usually connects one outdoor condenser to several indoor fan coil units. In Singapore shopping language, this is often described as System 2, System 3, System 4, and so on.
A System 3 aircon can suit households that want cooling for three rooms, such as the master bedroom, common bedroom, and study. The advantage is a more organised outdoor condenser setup compared with separate single-room systems. The trade-off is planning. If the condenser, piping route, drainage, or indoor unit capacity is wrong, the whole system becomes frustrating.
Compare System 3 air conditioners if your home needs cooling across several bedrooms or work areas.
Portable air conditioner: flexible but not invisible
A portable air conditioner can help when permanent installation is not allowed or not worth the trouble. It may suit rental rooms, temporary setups, or spaces that need occasional cooling.
The trade-off is that portable units still need a way to exhaust warm air, usually through a window kit or similar venting setup. They also take up floor space and may need drainage attention. Do not buy one expecting it to work like a wall-mounted split system without the installation work.
Window, wall, central, and other aircon types
Window and wall aircon units can cool a single room, but installation rules, window use, noise, and exterior appearance need careful checking. For HDB flats, air-conditioner installation must follow official guidelines and approved installation methods.
Central ducted systems, geothermal systems, and packaged terminal air conditioners are more common in larger homes, commercial buildings, hotels, or overseas contexts. They are worth knowing, but they are usually not the first choice for typical BTO, HDB, or condo bedrooms.
Evaporative coolers are another example. They can work better in dry climates, but Singapore humidity makes them less suitable because they rely on evaporation and can add moisture to the air.
Smart and inverter aircon features
Smart controls and inverter technology are features, not separate room-planning decisions. A smart aircon may allow app control, scheduling, or connected-home convenience. An inverter aircon can adjust output more smoothly than a fixed-speed unit, which can help with steadier cooling when the system is correctly sized.
These features are useful, but they do not fix poor sizing or bad installation. A smart undersized unit is still undersized. An inverter system still needs the right BTU capacity, condenser pairing, drainage, and service access.
If you prefer comparing by brand and model, browse Daikin air conditioners and check current model details, system type, BTU rating, installation inclusions, and warranty terms.
How to choose the right type of aircon
| Home situation | Aircon direction | Why |
|---|---|---|
| One bedroom only | System 1 | Focused cooling without planning a full multi-room setup. |
| Two to four bedrooms | Multi-split system | Keeps several rooms connected to one outdoor condenser arrangement. |
| Rental room or temporary use | Portable air conditioner | Avoids permanent installation where fixed works are not suitable. |
| Large landed home or major renovation | Ducted or more complex system | May suit larger layouts but needs specialist planning. |
| West-facing or hot room | Correctly sized split system | Strong afternoon heat can increase cooling load. |
Before you buy any aircon system
- Count the rooms: Decide which rooms need cooling daily, occasionally, or not at all.
- Check room heat: West-facing rooms, large windows, electronics, and open layouts may need more careful sizing.
- Plan the condenser: Confirm where the outdoor unit can sit and how it will be accessed for servicing.
- Check piping and drainage: Poor routing can lead to visible trunking, leaks, or harder maintenance.
- Review HDB or condo rules: Installation requirements can affect unit type, location, and installer requirements.
- Compare full cost: Look beyond the unit price and check installation materials, brackets, trunking, warranty, and servicing needs.
Every order ships locally, and after-sales support is handled from Singapore. Complimentary delivery and professional installation are available on qualifying orders. The team is reachable at +65 6950-2657, Monday to Friday, 9am to 6pm.
Frequently asked questions about types of aircon
What are the main types of aircon for Singapore homes?
The main types of aircon for Singapore homes are System 1 single-split units, multi-split systems such as System 2, System 3 or System 4, portable air conditioners, and selected window or wall units where installation rules allow.
What is the difference between System 1 and System 3 aircon?
A System 1 aircon cools one room with one indoor unit and one outdoor unit. A System 3 aircon usually connects three indoor units to one outdoor condenser, making it suitable for three rooms when the setup is planned correctly.
Is a portable air conditioner good for HDB rooms?
A portable air conditioner can work for selected HDB rooms if there is space, safe power access, and a proper exhaust route. It is flexible, but it may be noisier and less neat than a fixed split system.
Which types of air conditioning system are not suitable for humid Singapore homes?
Evaporative coolers are generally less suitable for humid Singapore homes because they rely on water evaporation and can add moisture to the air. Ducted or central systems may also be excessive for typical HDB rooms unless the home is larger or specially designed for it.
